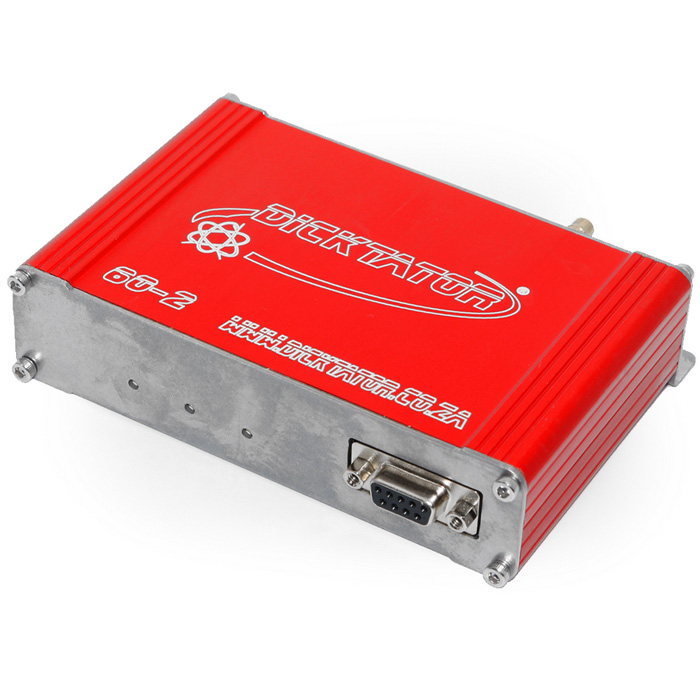

DICKTATOR 60-2 SYSTEM

Description

SPECIFICATIONS

• 1 to 12 cylinders are supported but 3 is excluded.
• Fuel control adjustable in 1,5,10,Standard, 250 micro second increments.
• Fully interpolated RPM and load sites.Load sensing BT map sensor or T.P.S.
• Load range 3 BAR map sensor: -100KPA to 200KPA.
• Water, Air temperature and T.P.S sensor can be calibrated.
• Battery voltage compensation.
• Adjustable start prime.
• Twin injector drivers.
• Triple ignition driver suitable for intelligent or dumb igniters.
• 6-cylinders or coil-on-plug support up to 4 cylinders.
• Coil charge time adjustable.
• Two wire idle motor control.
• Fuel pump control.
• Real time programming.
• User friendly software.
• 1 General purpose output.
• Tacho output.
• High speed data logging to PC at up to 60 samples per second.
• Selectable rev limiting through fuel cut or spark cut.
